Custom Widget

With the Custom widget, you can display a website, custom HTML code, or even a Google Form. Using this widget requires a solid understanding of iFrame embedding and its limitations, as many options are restricted for security reasons. Before proceeding, check the Related articles for your specific use-case.

Properties​

Data​

In the Data Menu, you can bind data from datasources.


Text​

In the Text Menu, you can choose your Content type:

  • URL type: Set the URL that you want to display. You can also make it Interactive and display it from a Same origin website.
    • Supports Quick Edit functionality for changing the URL without opening the full content editor.
    • With Use separate webview, supported players display the URL in a native webview instead of an iFrame. Learn more: How to display a website in a separate webview


  • HTML Code type: Display HTML code that you write or paste into the text box. You can also make it Interactive.
    • Does not support Quick Edit functionality.


  • HTML File type: Display an HTML file that has been uploaded to the File manager. The HTML file picker offers HTML files only, and an external address cannot be entered here — use the URL type for that.

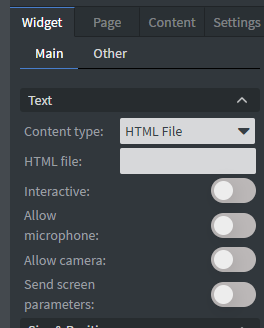

The HTML File content type with its file picker

Learn more: Quick Editable Widgets

Scrollbar inside the widget

If a scrollbar appears inside the widget, it comes from the embedded page itself: its content is larger than the area it has. The widget has no scrollbar setting, and Wallboard cannot hide it from outside, because the browser does not allow styling a page loaded from another address. Hide it in the page's own CSS instead. If the content fits anyway:

html, body { overflow: hidden; }

If the page still needs to scroll, but the bar should not show:

::-webkit-scrollbar { display: none; }

With the HTML Code and HTML File types, add the same CSS to your own code.

Size & Position​

In the Size & Position Menu, you can select the width, height, and placement of your widget quickly.


Proof of Play​

Learn more: Enable reporting (Content) and Enable reporting (Slide).

Effects​

In the Effects Menu, you can select a background image or color for your widget.


Animation​

In the Animation Menu, you can choose the Enter, Repeat, and Exit animations of your widget.


Additional Properties​

Under the Jump Menu, you can click on the three dots to access Additional Properties (aka MORE).

Custom Margin​

Allows you to set a custom-sized margin to your widget.

Shadow​

Adds a shadow to your widget.

Opacity​

Changes the transparency and rounds the edges of your widget.

Mask​

Lets you select a PNG image to affect the shape of your widget. Learn more: Masking.

Flip​

Allows you to flip your widget horizontally, vertically, or both.

Click Through​

Enables clicking through the widget to interact with other widgets behind it.

Hide Based On​

Hides the widget based on data from a Datasource. If the datarow of the device and the given data are not the same, the widget will not appear on the device.

Background Color (BG Color)​

Sets a background color for the widget from a Datasource.


Tutorials​

Tutorial YouTube Video: Custom Widget​
