Room state
The Room State widget displays the status of your meeting, represented as a colored bar or circle. You can fully customize the widget's appearance through the Room State settings.
Room State Settings
In the Room State settings block, you can choose the widget's filling style from the following options:
- Complete: A fully filled shape that changes color based on status.
- Vertical Bar: A bar displayed vertically that fills from bottom to top, showing meeting progress.
- Horizontal Bar: A bar displayed horizontally that fills from left to right, showing meeting progress.
- Circle: A circular representation that fills clockwise using a conic gradient to show meeting progress.
Room Settings
In this section, you can modify the colors representing various statuses:
- Free: The color indicating when the room is available. Default: #00ff00 (green).
- Busy: The color indicating when the room is occupied. Default: #ff0000 (red).
- Almost Started: The color used when a meeting is about to begin (defined by the "Almost started minutes" setting). Default: #ffff00 (yellow).
Almost started minutes
Set the number of minutes before an event starts that the room will be highlighted in the Almost Started color. This allows for a visual indicator when the meeting is approaching.
Other Settings

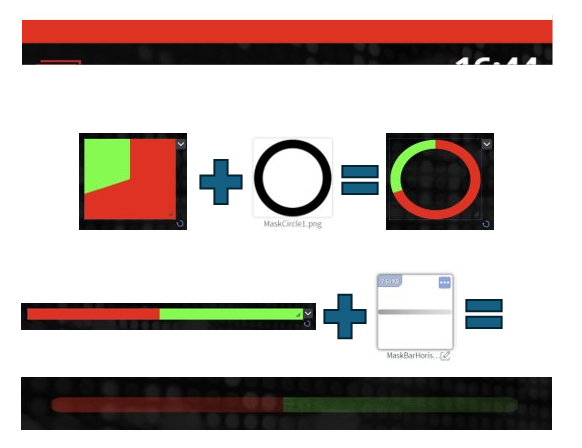

In the widget's Other tab, you can upload semi-transparent masking images to enhance the visual appearance of the widget.
Here is an example:
