Manual installation on Brightsign

In this article we will show you hpw can you install our JSCore application to Brightsign devices.

Download the app From Wallboard Portal

Firstly, you have to download the latest JSCore application for Brightsign devices.

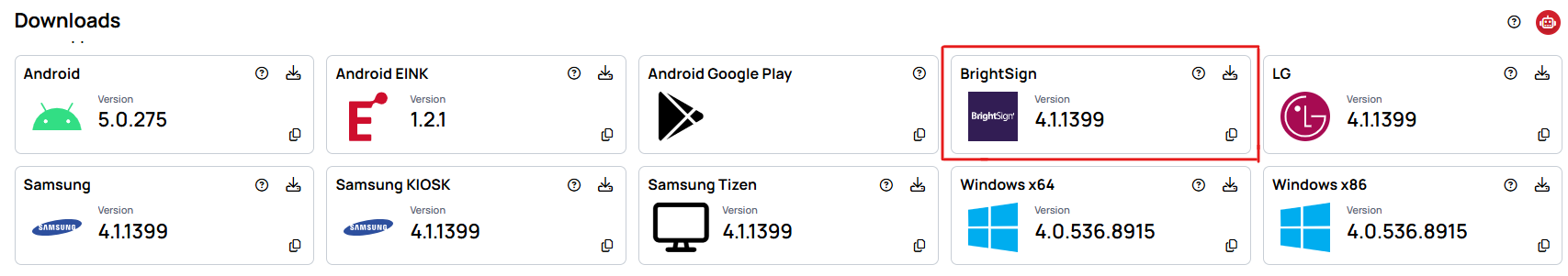

• It can be found under Setting >> Downloads sub-menu.
  • You can download both the Legacy and the JSCore applications here

Learn more: Changelog for Legacy Brightsign

Please Note

The Legacy version for BrightSign devices is no longer supported in our system.
To use our actively developed application in Brightsign, we highly recommend you to choose our JSCore version.

From URL

• You can also download the latest version of the application from https://example.domain.com/api/storage/update/jscore/brightsign/brightsign-client.zip
• If you require a specific version you can achieve that by https://example.domain.com/api/storage/update/jscore/brightsign/default/version number/brightsign-client.zip
  • The https://example.domain.com and version number should be filled out according to your server URL and desired version

Preparations

• Format the external storage you intend to use within your BrightSign device
• Unzip the downloaded .zip file to the external storage

Installation and Registeration on server

• Attach the storage to your Brightsign device, then wait until the installation process finishes

PLEASE make sure you have stable internet connection

• When the installation process is finished, you will see a modal where you have to confirm or modify the server url, where the device should attempt the registration.
  • It will take 2 minutes until the final confirmation, or you can manually confirm it if your device possesses USB-A port.
  • If you modify the URL, the timer with 2 minutes will restart.

4-character registration code

• When the registration to the server finished, you will see a 4-character long registration code.
• You have to open the Home >> Screens >> Screen >> Add screen modal where you have to fill the Temporary id / Serial field with the 4-character code you see.

Learn more: More about Device registration

• If you want to preset settings on your device during registration, then enable the Advanced options

Learn more: More about Advanced device configuration

• Fill the required fields, then save it.
